RX1214B300Y

NPN microwave power transistor

NXP

RX1214B300Y Features

* Interdigitated structure provides high emitter efficiency

* Diffused emitter ballasting resistors providing excellent current sharing and withstanding a high VSWR

* Gold metallization realizes very stable characteristics and excellent lifetime

* Multicell geometry i

RX1214B300Y General Description

NPN silicon planar epitaxial microwave power transistor in a SOT439A metal ceramic flange package with the base connected to the flange. 3 2 Top view olumns RX1214B300Y PINNING - SOT439A PIN 1 2 3 collector emitter base connected to ﬂange DESCRIPTION 1 c b 3 e MAM045 Fig.1 Simplified outline an.

RX1214B300Y Datasheet (74.90 KB)

RX1214B300Y Datasheet Preview — Preview of RX1214B300Y PDF

Datasheet Details

Part number:

RX1214B300Y

Manufacturer:

NXP ↗

File Size:

74.90 KB

Description:

Npn microwave power transistor.

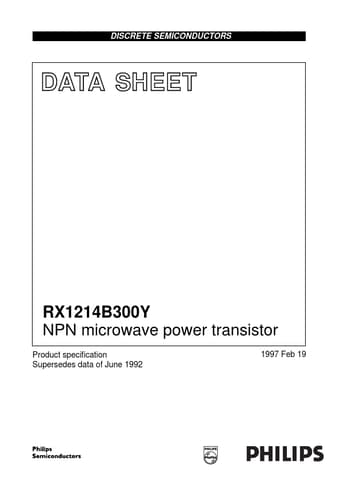

DISCRETE SEMICONDUCTORS DATA SHEET RX1214B300Y NPN microwave power transistor Product speciﬁcation Supersedes data of June 1992 1997 Feb 19 Philips.
