SAA7210

Decoder for compact disc digital audio system

SAA7210 Features

* Adaptive slicer with high-frequency level detector for input data

* Built-in drop-out detector to prevent error propagation in adaptive slicer

* Fully protected timing synchronization to incoming data

* Eight-to-Fourte

SAA7210 General Description

The SAA7210 incorporates the functions of demodulator, subcoding processor, error corrector and concealment in one chip. The device accepts data from the disc and outputs serial data directly to a dual 16-bit digital-to-analogue converter TOA1541 (OAC) via the Inter IC signal bus (1 2 S). The 12 S o.

SAA7210 Datasheet (690.19 KB)

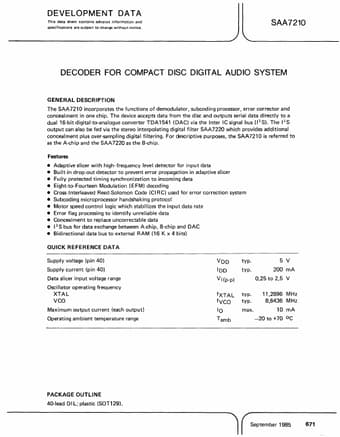

Preview of SAA7210 PDF

Datasheet Details

Part number:

SAA7210

Manufacturer:

NXP ↗

File Size:

690.19 KB

Description:

Decoder for compact disc digital audio system.
DEVELOPMENT DATA This data sheet contains advance information and specifications are subject to change without notice. l____S_A_A_7_2_1_0 _____ DECO.
