SC28C94

Quad universal asynchronous receiver/transmitter QUART

SC28C94 Features

* New low overhead interrupt control

* All commercial parts meet industrial timing and temperature parameters

* Four Philips Semiconductors industry-standard UARTs

* Eight byte receive FIFO and eight byte transmit FIFO for each UART

* Programmable data form

SC28C94 General Description

The 28C94 quad universal asynchronous receiver/transmitter (QUART) combines four enhanced Philips Semiconductors industry-standard UARTs with an innovative interrupt scheme that can vastly minimize host processor overhead. It is implemented using Philips Semiconductors’ high-speed CMOS process that .

SC28C94 Datasheet (230.23 KB)

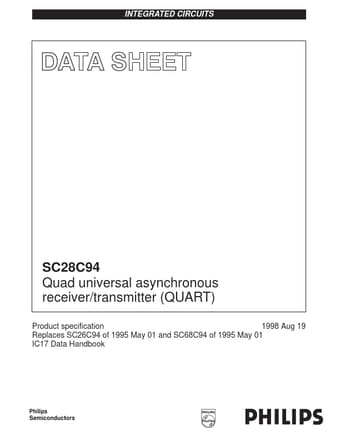

Preview of SC28C94 PDF

Datasheet Details

Part number:

SC28C94

Manufacturer:

NXP ↗

File Size:

230.23 KB

Description:

Quad universal asynchronous receiver/transmitter quart.
INTEGRATED CIRCUITS SC28C94 Quad universal asynchronous receiver/transmitter (QUART) Product specification 1998 Aug 19 Replaces SC26C94 of 1995 May 0.
