SC281xx Datasheet - VITALCONN

SC281xx SFP/SFP+ CAGES&CONNECTOR

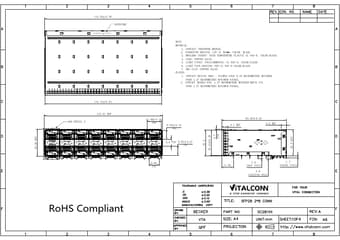

114.85±0.30 DATECODE 114.41±0.25 SEE DETAIL A 115.81 REF NOTE: MATERI AL: 1. CONTACT: PHOSPHOR BRONZE. 2. CONNECTOR HOUSING: LCP UL 94V 0. COLOR: BLACK. 3. MOULDED INSERT: HIGH TEMPERATURE PLASTIC UL 94V-0. COLOR:BLACK. 4. CAGE: COPPER ALLOY. 5. LIGHT PIPES: POLYCARBONATE. UL 94V-0. COLOR:CLEAR 6. LIGHT PIPE HOUSING: PBT UL 94V-0 COLOR:BLACK. 7. EMI CLIP: COPPER ALLOY. PLATED: 1. CONTACT MATING AREA : PLATING GOLD 0.76 MICROMETERS MINIMUM OVER 1.27 MICROMETERS MINIMUM NICKEL. 2. CONTACT NEED.

SC281xx-VITALCONN.pdf

Preview of SC281xx PDF
SC281xx Datasheet Preview Page 2 SC281xx Datasheet Preview Page 3

Datasheet Details

Part number:

SC281xx

Manufacturer:

VITALCONN

File Size:

390.29 KB

Description:

Sfp/sfp+ cages&connector.
