SC28L194

Quad UART for 3.3V and 5V supply voltage

SC28L194 Features

* Single 3.3V and 5.0V power supply

* Four Philips industry standard full duplex UART channels

* Sixteen byte receiver FIFOs for each UART

* Sixteen byte transmit FIFOs for each UART

* In band flow control using programmable Xon/Xoff characters

* Flow

SC28L194 General Description

The Philips 28L194 Quad UART is a single chip CMOS-LSI communications device that provides 4 full-duplex asynchronous channels with significantly deeper 16 byte FIFOs, Automatic in-band flow control using Xon/Xoff characters defined by the user and address recognition in the Wake-up mode. Synchronou.

SC28L194 Datasheet (294.09 KB)

Preview of SC28L194 PDF

Datasheet Details

Part number:

SC28L194

Manufacturer:

NXP ↗

File Size:

294.09 KB

Description:

Quad uart for 3.3v and 5v supply voltage.

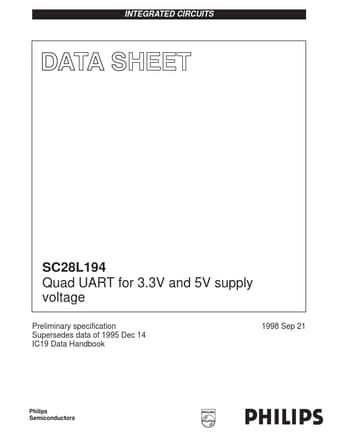

INTEGRATED CIRCUITS SC28L194 Quad UART for 3.3V and 5V supply voltage Preliminary specification Supersedes data of 1995 Dec 14 IC19 Data Handbook 199.
