SC28L91

3.3V-5.0V Universal Asynchronous Receiver/Transmitter (UART)

SC28L91 Features

* Member of IMPACT family: 3.3 to 5.0 volt ,

* 40°C to +85°C and 68K for 80xxx bus interface for all devices.

* A full-duplex independent asynchronous receiver/transmitter

* 16 character FIFOs for each receiver and transmitter

* Pin programming selects 68K or

SC28L91 General Description

The SC28L91 is a new member of the IMPACT family of Serial Communications Controllers. It is a single channel UART operating at 3.3 and 5.0 volts Vcc, 8 or 16 byte FIFOs and is quite compatible with software of the SC28L92 and previous UARTs offered by Philips. It is a new part that is similar to ou.

SC28L91 Datasheet (273.03 KB)

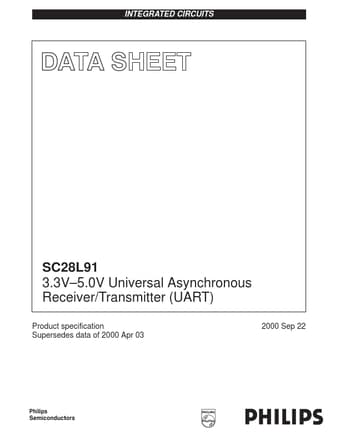

Preview of SC28L91 PDF

Datasheet Details

Part number:

SC28L91

Manufacturer:

NXP ↗

File Size:

273.03 KB

Description:

3.3v-5.0v universal asynchronous receiver/transmitter (uart).
INTEGRATED CIRCUITS SC28L91 3.3V

*5.0V Universal Asynchronous Receiver/Transmitter (UART) Product specification Supersedes data of 2000 Apr 03.
