TDA8547 2 x 1 W BTL audio amplifier with output channel switching

TDA8547 Description

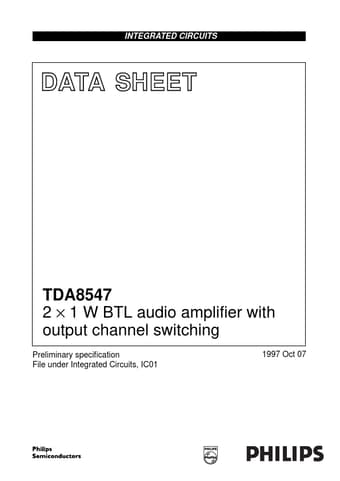

INTEGRATED CIRCUITS DATA SHEET TDA8547 2 × 1 W BTL audio amplifier with output channel switching Preliminary specification File under Integrated Circ.
APPLICATIONS. Telecommunication equipment. Portable consumer products. Personal computers. Motor-driver (servo).

TDA8547 Features

* Selection between output channels
* Flexibility in use
* Few external components
* Low saturation voltage of output stage
* Gain can be fixed with external resistors
* Standby mode controlled by CMOS compatible levels
* Low standby current

TDA8547 Applications

* Telecommunication equipment
* Portable consumer products
* Personal computers
* Motor-driver (servo). TDA8547 The TDA8547(T) is a two channel audio power amplifier for an output power of 2 × 1 W with an 8 Ω load at a 5 V supply. The circuit contains two BTL amplif
