TDA8588J

Power Amplifier and Multiple Voltage Regulator

TDA8588J Features

* Amplifiers

* I2C-bus control

* Can drive a 2 Ω load with a battery voltage of up to 16 V and a 4 Ω load with a battery voltage of up to 18 V

* DC load detection, open, short and present

* AC load (tweeter) detection

* Programmable clip detect; 1 % or 4 %

TDA8588J General Description

Amplifiers The TDA8588 has a complementary quad audio power amplifier that uses BCDMOS technology. It contains four amplifiers configured in Bridge Tied Load (BTL) to drive speakers for front and rear left and right channels. The I2C-bus allows diagnostic information of each amplifier and its speaker.

TDA8588J Datasheet (302.35 KB)

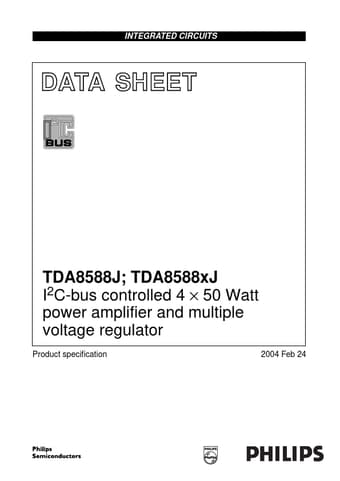

Preview of TDA8588J PDF

Datasheet Details

Part number:

TDA8588J

Manufacturer:

Philips

File Size:

302.35 KB

Description:

Power amplifier and multiple voltage regulator.
INTEGRATED CIRCUITS DATA SHEET TDA8588J; TDA8588xJ I2C-bus controlled 4 × 50 Watt power amplifier and multiple voltage regulator Product specificatio.
