TDA8587J

4 x 25 W BTL power amplifier

TDA8587J Features

* 2.1 General s s s s s s s s s Protected against ElectroStatic Discharge (ESD) Thermal (foldback) protection to prevent overheating Load dump/overvoltage protection Single mode control pin (standby, operating: mute/on) Low standby current (only regulator 2 active) Hysteresis on internal switching lev

TDA8587J General Description

The TDA8587J is a combination of a quad Bridge-Tied Load (BTL) power amplifier, a multiple voltage regulator and a power switch. Several protections and diagnostic options (e.g. DIAG, WARN) are incorporated in this design. This device is primarily developed to cover the complete power supply and audi.

TDA8587J Datasheet (222.70 KB)

Preview of TDA8587J PDF

Datasheet Details

Part number:

TDA8587J

Manufacturer:

NXP ↗

File Size:

222.70 KB

Description:

4 x 25 w btl power amplifier.
TDA8587J Rev. 01

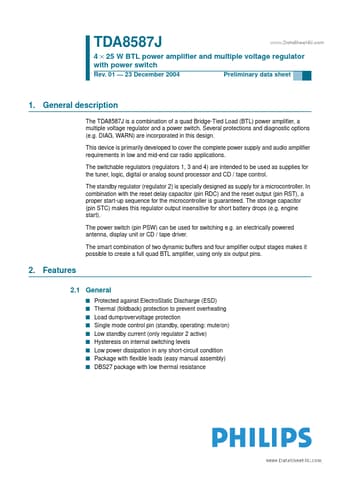

* 23 December 2004 www.DataSheet4U.com 4 × 25 W BTL power amplifier and multiple voltage regulator with power switch Prelimi.
