TDA8547 - 2 x 0.7W BTL AUDIO AMPLIFIER

Product Overview

UTC

📥 Download Datasheet

TDA8547 2 x 0.7W BTL AUDIO AMPLIFIER by UTC - Datasheet Preview — Datasheet preview – TDA8547

Datasheet Details

Part number	TDA8547
Manufacturer	UTC
File Size	300.28 KB
Description	2 x 0.7W BTL AUDIO AMPLIFIER
Datasheet	TDA8547 Datasheet
Additional preview pages of the TDA8547 datasheet.

Product details

Description

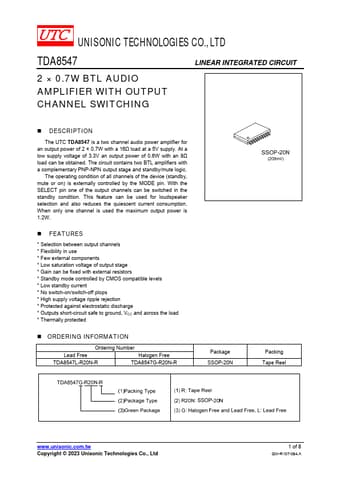

The UTC TDA8547 is a two channel audio power amplifier for an output power of 2 × 0.7W with a 16Ω load at a 5V supply.

Features

Selection between output channels.
Flexibility in use.
Few external components.
Low saturation voltage of output stage.
Gain can be fixed with external resistors.
Standby mode controlled by CMOS compatible levels.
Low standby current.
No switch-on/switch-off plops.
High supply voltage ripple rejection.
Protected against electrostatic discharge.
Outputs short-circuit safe to ground, VCC and across the load.
Thermally protected.
ORDERI.
