TDA8543 - 2 W BTL audio amplifier

Product Overview

NXP

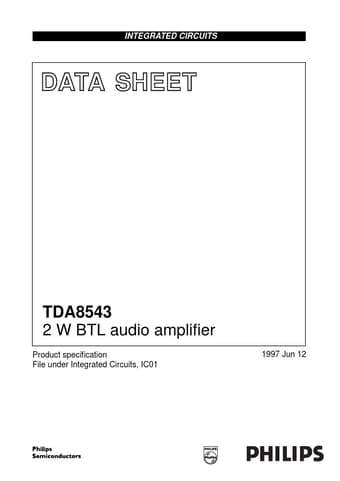

TDA8543 2 W BTL audio amplifier by NXP - Datasheet Preview — Datasheet preview – TDA8543

Datasheet Details

Part number	TDA8543
Manufacturer	NXP
File Size	201.24 KB
Description	2 W BTL audio amplifier
Datasheet	TDA8543 Datasheet
Additional preview pages of the TDA8543 datasheet.

Product details

Description

TDA8543 The TDA8543(T) is a one channel audio power amplifier for an output power of 2 W with an 8 Ω load at a 7.5 V supply.The circuit contains a BTL amplifier with a complementary PNP-NPN output stage and standby/mute logic.The TDA8543T comes in a 16 pin SO package and the TDA8543 in a 16 pin DIP package.MAX.18 12 10 UNIT V mA µA W W W % dB ORDERING INFORMATION TYPE NUMBER TDA8543T TDA8543 PACKAGE NAME SO16 DIP16 DESCRIPTION plastic sm

Features

Flexibility in use.
Few external components.
Low saturation voltage of output stage.
Gain can be fixed with external resistors.
Standby mode controlled by CMOS compatible levels.
Low standby current.
No switch-on/switch-off plops.
High supply voltage ripple rejection.
Protected against electrostatic discharge.
Outputs short-circuit safe to ground, VCC and across the load.
Thermally protected. QUIC.
