TDA8589BJ

I2C Bus Controlled 4 x 45 Watt Power Amplifier and Multiple Voltage Regulator

TDA8589BJ Features

* Amplifiers

* I2C-bus control

* Can drive a 2 Ω load with a battery voltage of up to 16 V and a 4 Ω load with a battery voltage of up to 18 V

* DC load detection: open, short and present

* AC load (tweeter) detection

* Programmable clip detect 1 % or 3%

TDA8589BJ General Description

Amplifiers The TDA8589 has a complementary quad audio power amplifier that uses BCDMOS technology. It contains four amplifiers configured in Bridge Tied Load (BTL) to drive speakers for front and rear left and right channels. The I2C-bus allows diagnostic information of each amplifier and its speaker.

TDA8589BJ Datasheet (394.28 KB)

Preview of TDA8589BJ PDF

Datasheet Details

Part number:

TDA8589BJ

Manufacturer:

Philips

File Size:

394.28 KB

Description:

I2c bus controlled 4 x 45 watt power amplifier and multiple voltage regulator.

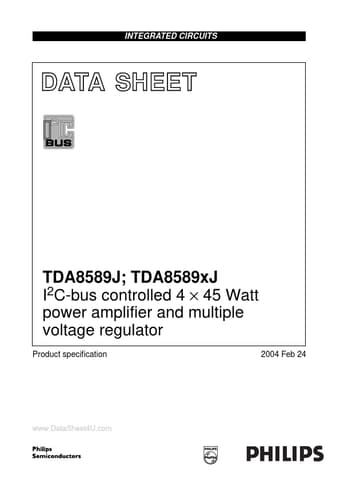

www.DataSheet4U.com INTEGRATED CIRCUITS DATA SHEET TDA8589J; TDA8589xJ I2C-bus controlled 4 × 45 Watt power amplifier and multiple voltage regulator .
