TDA8730 - PLL FM demodulator for DBS signals

TDA8730 Description

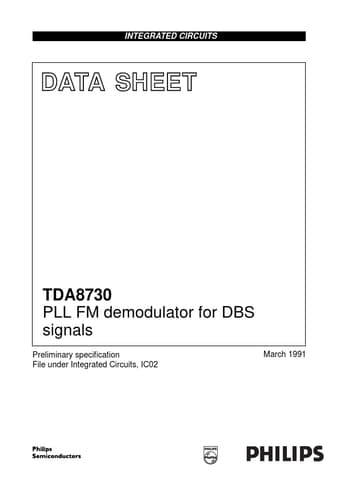

INTEGRATED CIRCUITS DATA SHEET TDA8730 PLL FM demodulator for DBS signals Preliminary specification File under Integrated Circuits, IC02 March 1991 .
The TDA8730 is a sensitive PLL demodulator for the second IF and direct broadcasting satellite (DBS) receivers.

TDA8730 Features

* Broadband IF amplifier
* PLL demodulator, consisting of:
* a multiplier
* a voltage controlled oscillator
* a loop amplifier
* AGC detector and DC amplifier
* LOW impedance video and data output
* Power supply voltage stabilizer GENER

TDA8730 Applications

* Direct broadcasting satellite (DBS) receivers. March 1991 3 Philips Semiconductors Preliminary specification PLL FM demodulator for DBS signals TDA8730 Fig.2 Block diagram. March 1991 4 Philips Semiconductors Preliminary specification PLL FM demodulator for DBS signals FUNCTIONAL DESCRIPTI
