TDA8735 - PLL frequency synthesizer

TDA8735 Description

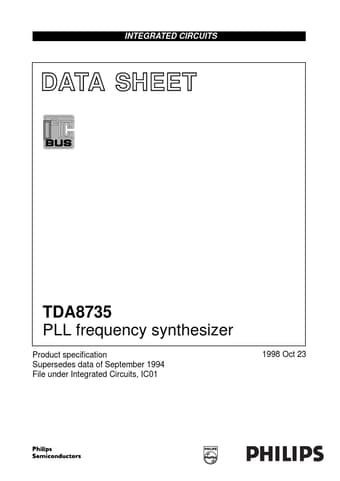

INTEGRATED CIRCUITS DATA SHEET TDA8735 PLL frequency synthesizer Product speciļ¬cation Supersedes data of September 1994 File under Integrated Circui.
TDA8735 The TDA8735 is a single-chip PLL synthesizer designed for satellite receivers.

TDA8735 Features

* Complete 30 MHz single-chip tuning system
* Loop amplifier included
* 2-level current amplifier (charge pump) for adjusting the loop gain
* A powerful digital memory phase detector
* Programmable reference frequencies of 1 kHz, 10 kHz or 25 kHz
* I2C

TDA8735 Applications

* Satellite sound receiver
