UAA2067G

Image reject 1800 MHz transceiver for DECT applications

UAA2067G Features

* Receiver with:

* low noise amplifier

* dual quadrature mixers for image rejection (lower sideband)

* I and Q combining networks at a fixed IF

* Both high-frequency and low-frequency VCOs including buffers with good isolation for low pulling

* Transmi

UAA2067G General Description

The UAA2067G is a low-power transceiver intended for use in portable and base station transceivers complying with the DECT system. The IC performs in accordance with specifications in the

*30 to +85°C temperature range. The UAA2067G contains a front-end receiver for the 1800 to 1900 MHz freq.

UAA2067G Datasheet (148.21 KB)

Preview of UAA2067G PDF

Datasheet Details

Part number:

UAA2067G

Manufacturer:

NXP ↗

File Size:

148.21 KB

Description:

Image reject 1800 mhz transceiver for dect applications.

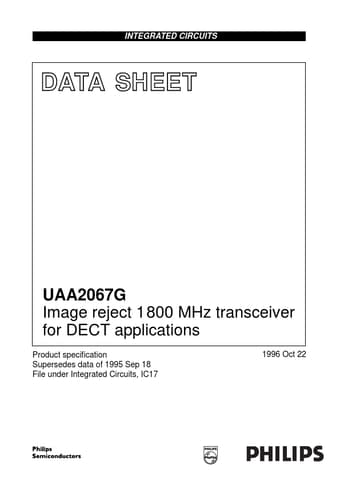

INTEGRATED CIRCUITS DATA SHEET UAA2067G Image reject 1800 MHz transceiver for DECT applications Product specification Supersedes data of 1995 Sep 18 .
