UAA2068AHL Datasheet - NXP

UAA2068AHL - Transmit chain and synthesizer with integrated VCO for DECT

The UAA2068AHL BiCMOS device integrates a 950 MHz VCO, a frequency doubler, main and reference dividers and a phase comparator, to implement a phase-locked loop for DECT channel frequencies.

The 1.9 GHz signal is buffered and switched, in TX mode, to drive the transmit power amplifier (CGY20xx serie

UAA2068AHL Features

* Economical integrated solution for frequency generation in DECT cordless telephones

* Integrated low phase noise 950 MHz VCO with frequency doubler

* Local Oscillator (LO) drive (

* 14 dBm) for RF mixer circuit

* Dedicated DECT PLL synthesizer

* 3-line

UAA2068AHL_PhilipsSemiconductors.pdf

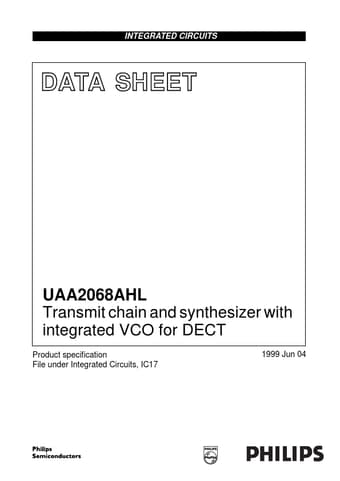

Preview of UAA2068AHL PDF
UAA2068AHL Datasheet Preview Page 2 UAA2068AHL Datasheet Preview Page 3

Datasheet Details

Part number:

UAA2068AHL

Manufacturer:

NXP ↗

File Size:

121.92 KB

Description:

Transmit chain and synthesizer with integrated vco for dect.
