150NS100, 150NS - Standard Recovery Diodes

Naina Semiconductor

📥 Download Datasheet

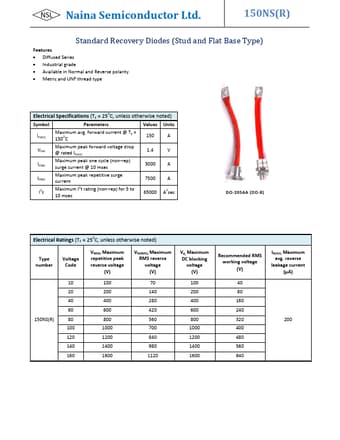

150NS100 Datasheet Preview — This datasheet PDF includes multiple part numbers: 150NS100, 150NS. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

Datasheet Details

Part number	150NS100, 150NS
Manufacturer	Naina Semiconductor
File Size	103.30 KB
Description	Standard Recovery Diodes
Datasheet	150NS_NainaSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: 150NS100, 150NS. Please refer to the document for exact specifications by model.

150NS100 Product details

Features

Diffused Series.
Industrial grade.
Available in Normal and Reverse polarity.
Metric and UNF thread type Electrical Specifications (TE = 250C, unless otherwise noted) Symbol Parameters Values Units IF(AV) Maximum avg. forward current @ TE = 150OC 150 A VFM Maximum peak forward voltage drop @ rated IF(AV) 1.4 V IFSM Maximum peak one cycle (non-rep) surge current @ 10 msec 3000 A IFRM Maximum peak repetitive surge current 7500 A I2t Maximum I.
