2N5515 Datasheet - National Semiconductor

N-Channel Monolithic Dual JFET

2N5515 General Description

The 2N5515 thru 2N5524 series of N-channel monolithic dual JFETs is designed for low to medium frequency differential amplifiers requiring very low noise and high common-mode rejection. Absolute Maximum Ratings (25O Gate-Drain or Gate-Source Voltage -40V Gate Current 50 mA Device Dissipation (.

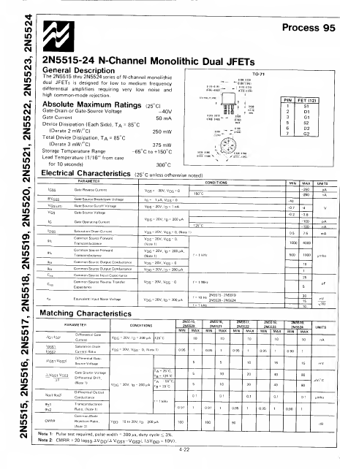

2N5515 Datasheet (34.52 KB)

Preview of 2N5515 PDF

Datasheet Details

Part number:

2N5515

Manufacturer:

National Semiconductor

File Size:

34.52 KB

Description:

N-channel monolithic dual jfet.
