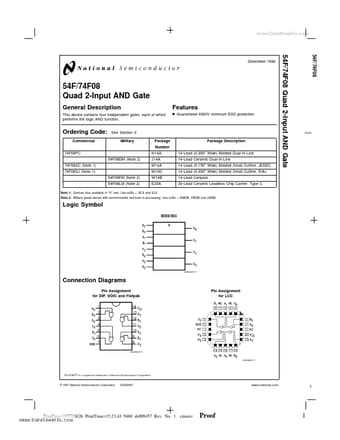

54F08 Datasheet, Gate, National Semiconductor

54F08 Features

• Gate n Guaranteed 4000V minimum ESD protection Ordering Code: Commercial 74F08PC See Section 0 Military Package Number N14A 54F08DM (Note 2) J14A M14A M14D 54F08FM (Note 2) 54F08LM (Note 2

PDF File Details

Part number:

54F08

Manufacturer:

National Semiconductor

File Size:

127.96kb

Download:

📄 Datasheet

Description:

Quad 2-input and gate. This device contains four independent gates, each of which performs the logic AND function. Features n Guaranteed 4000V minimum ESD
