CD40106BM Datasheet - National Semiconductor

CD40106BM Hex Schmitt Trigger

The CD40106B Hex Schmitt Trigger is a monolithic complementary MOS (CMOS) integrated circuit constructed with N and P-channel enhancement transistors The positive and negative-going threshold voltages VT a and VTb show low variation with respect to temperature (typ 0 0005V C at VDD e 10V) and hyster.

CD40106BM Features

* Y Y Y Y Wide supply voltage range High noise immunity Low power TTL compatibility Hysteresis Y Y 3V to 15V 0 7 VDD (typ ) Fan out of 2 driving 74L or 1 driving 74LS 0 4 VDD (typ ) 0 2 VDD guaranteed Equivalent to MM54C14 MM74C14 Equivalent to MC14584B Connection Diagram Dual-In-Line Package Sw

CD40106BM_NationalSemiconductor.pdf

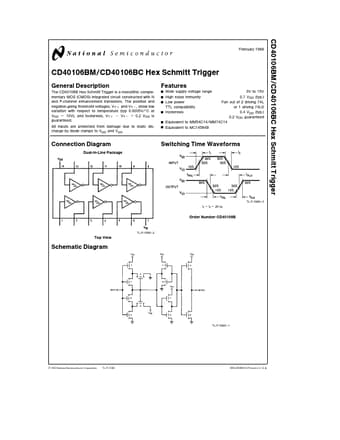

Preview of CD40106BM PDF
CD40106BM Datasheet Preview Page 2 CD40106BM Datasheet Preview Page 3

Datasheet Details

Part number:

CD40106BM

Manufacturer:

National Semiconductor

File Size:

134.61 KB

Description:

Hex schmitt trigger.
