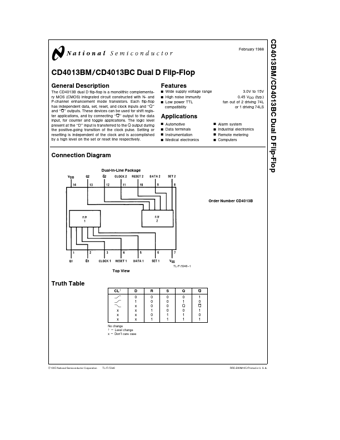

CD4013BC Datasheet, Flip-flop, National Semiconductor

CD4013BC Features

• Flip-flop Y Wide supply voltage range Y High noise immunity Y Low power TTL compatibility 3 0V to 15V 0 45 VDD (typ ) fan out of 2 driving 74L or 1 driving 74LS Applications Y Automotive Y Data

PDF File Details

Part number:

CD4013BC

Manufacturer:

National Semiconductor

File Size:

141.42kb

Download:

📄 Datasheet

Description:

Dual d flip-flop. The CD4013B dual D flip-flop is a monolithic complementary MOS (CMOS) integrated circuit constructed with N- and P-channel enhancemen

CD4013BC Application

• Applications and by connecting ‘‘Q’’ output to the data input for counter and toggle applications The logic level present at the ‘‘D’’ input is tran
