DAC121S101 - 12-Bit Micro Power Digital-to-Analog Converter

Product Overview

National Semiconductor

Datasheet Details

Part number	DAC121S101
Manufacturer	National Semiconductor
File Size	937.06 KB
Description	12-Bit Micro Power Digital-to-Analog Converter
Datasheet	DAC121S101 Datasheet

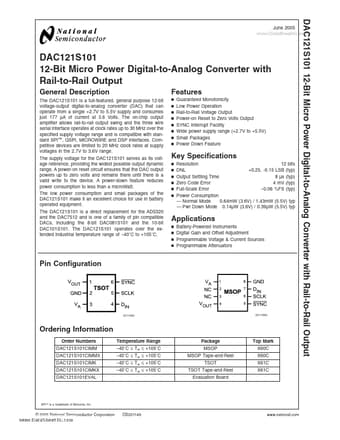

Additional preview pages of the DAC121S101 datasheet.

Product details

Description

The DAC121S101 is a full-featured, general purpose 12-bit voltage-output digital-to-analog converter (DAC) that can operate from a single +2.7V to 5.5V supply and consumes just 177 µA of current at 3.6 Volts.

Features

n n n n n n n n Guaranteed Monotonicity Low Power Operation Rail-to-Rail Voltage Output Power-on Reset to Zero Volts Output SYNC Interrupt Facility Wide power supply range (+2.7V to +5.5V) Small Packages Power Down Feature Key Specifications n n n n n n Resolution 12 bits DNL +0.25, -0.15 LSB (typ) Output Settling Time 8 µs (typ) Zero Code Error 4 mV (typ) Full-Scale Error.
0.06 %FS (typ) Power Consumption.
Normal Mode 0.64mW (3.6V) / 1.43mW (5.5V) typ.
Pwr Down Mode 0.
