DH0028C

hammer driver

DH0028C Features

* Low standby power: 45 mW at Vee = 36V. 35 mW at Vee = 28V.

* AND input with expander affords logic flexibility.

* Fast turn-on, typically 200 ns_ Molded Dual

* lnwLine Package V" 1 INPUT 2 INPUT 3

* EXPANDER INPUT 5 10 OUTPUT , Nt INTERNAL CONNECTION 7 GROUND

DH0028C General Description

The DH0028C/DH0028CN is a high current hammer driver designed for utilization in a wide variety of printer applications. The device is capable of driving 6 amp pulsed loads at duty cycles up to 10% (1 ms ON/10 ms OFF). The input is DTL/TTL compatible and requires only a single voltage supply in the .

DH0028C Datasheet (97.71 KB)

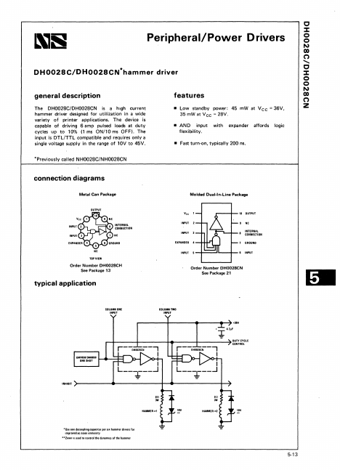

Preview of DH0028C PDF

Datasheet Details

Part number:

DH0028C

Manufacturer:

National Semiconductor

File Size:

97.71 KB

Description:

Hammer driver.
