DM74LS74A

Dual Positive-Edge-Triggered D Flip-Flops

DM74LS74A Features

* Y Alternate military aerospace device (54LS74) is available Contact a National Semiconductor Sales Office Distributor for specifications Connection Diagram Dual-In-Line Package TL F 6373

* 1 Order Number 54LS74DMQB 54LS74FMQB 54LS74LMQB DM54LS74AJ DM54LS74AW DM74LS74AM or DM74LS74AN See

DM74LS74A General Description

This device contains two independent positive-edge-triggered D flip-flops with complementary outputs The information on the D input is accepted by the flip-flops on the positive going edge of the clock pulse The triggering occurs at a voltage level and is not directly related to the transition time .

DM74LS74A Datasheet (136.42 KB)

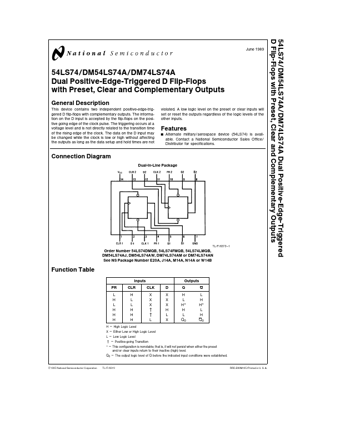

Preview of DM74LS74A PDF

Datasheet Details

Part number:

DM74LS74A

Manufacturer:

National Semiconductor

File Size:

136.42 KB

Description:

Dual positive-edge-triggered d flip-flops.
54LS74 DM54LS74A DM74LS74A Dual Positive-Edge-Triggered D Flip-Flops with Preset Clear and Complementary Outputs June 1989 54LS74 DM54LS74A DM74LS74.
