DM74LS85 Datasheet, Comparators, National Semiconductor

DM74LS85 Features

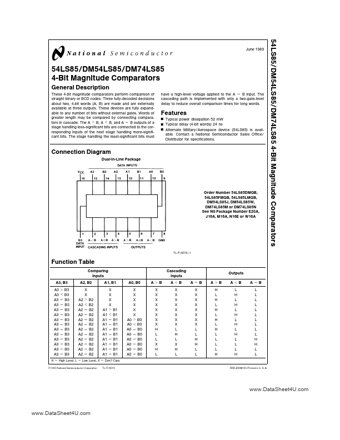

• Comparators Y Y Y Typical power dissipation 52 mW Typical delay (4-bit words) 24 ns Alternate Military Aerospace device (54LS85) is available Contact a National Semiconductor Sales Office Distribu

PDF File Details

Part number:

DM74LS85

Manufacturer:

National Semiconductor

File Size:

175.58kb

Download:

📄 Datasheet

Description:

4-bit magnitude comparators. These 4-bit magnitude comparators perform comparison of straight binary or BCD codes Three fully-decoded decisions about two 4-bit wo
