DP83821

10/100/1000 Mb/s PCI Ethernet Network Interface Controller

DP83821 Features

* IEEE 802.3 Compliant, 33 Mhz, 32-bit PCI V2.2 MAC/BIU supports data rates from 1 Mb/s to 1000 Mb/s. This allows support for traditional 10 Mb/s Ethernet, 100 Mb/s Fast Ethernet, as well as 1000 Mb/s Gigabit Ethernet.

* Flexible, programmable Bus master - burst sizes of up to 256 dw

DP83821 General Description

DP83821 is a single-chip 10/100/1000 Mb/s Ethernet Controller for the PCI bus. It is targeted at highperformance adapter cards and mother boards. The DP83821 fully implements the V2.2 33 MHz, 32-bit PCI bus interface for host communications with power management support. Packet descriptors and data .

DP83821 Datasheet (1.17 MB)

Preview of DP83821 PDF

Datasheet Details

Part number:

DP83821

Manufacturer:

National Semiconductor

File Size:

1.17 MB

Description:

10/100/1000 mb/s pci ethernet network interface controller.

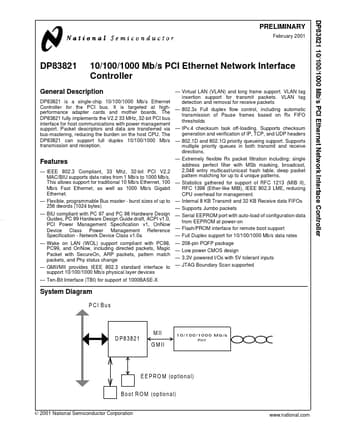

DP83821 10/100/1000 Mb/s PCI Ethernet Network Interface Controller PRELIMINARY February 2001 DP83821 10/100/1000 Mb/s PCI Ethernet Network Interfac.
