DP83822HF

low power 10/100 Mbps ethernet physical layer transceiver

DP83822HF Features

* Ultra-robust 10/100Mbs PHY

* IEC 61000-4-2 ESD: +/- 8KV contact discharge

* IEC 61000-4-4 EFT: Class A at 4KV

* CISPR 22 conducted emissions: Class B

* CISPR 22 radiated emissions: Class B

* Operating temperature: -40C to 125C

* MAC interface

DP83822HF General Description

Designed for harsh industrial environments, the DP83822 is an ultra-robust, low-power single-port 10/100 Mbps Ethernet PHY. The DP83822 provides all physical layer functions needed to transmit and receive data over standard twisted-pair cables, or connect to an external fiber optic transceiver. Add.

DP83822HF Datasheet (2.94 MB)

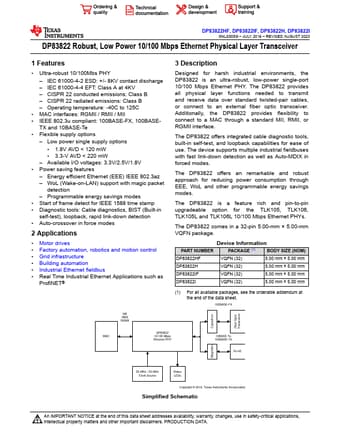

Preview of DP83822HF PDF

Datasheet Details

Part number:

DP83822HF

Manufacturer:

Texas Instruments ↗

File Size:

2.94 MB

Description:

Low power 10/100 mbps ethernet physical layer transceiver.
DP83822HF, DP83822IF, DP83822H, DP83822I SNLS505G

* JULY 2016

* REVISED AUGUST 2023 DP83822 Robust, Low Power 10/100 Mbps Ethernet Phy.
