DP83822H, DP83822HF low power 10/100 Mbps ethernet physical layer transceiver

DP83822H Description

DP83822HF, DP83822IF, DP83822H, DP83822I SNLS505G * JULY 2016 * REVISED AUGUST 2023 DP83822 Robust, Low Power 10/100 Mbps Ethernet Phy.
Designed for harsh industrial environments, the DP83822 is an ultra-robust, low-power single-port 10/100 Mbps Ethernet PHY.

DP83822H Features

* Ultra-robust 10/100Mbs PHY
* IEC 61000-4-2 ESD: +/- 8KV contact discharge
* IEC 61000-4-4 EFT: Class A at 4KV
* CISPR 22 conducted emissions: Class B
* CISPR 22 radiated emissions: Class B
* Operating temperature: -40C to 125C
* MAC interface

DP83822H Applications

* Motor drives
* Factory automation, robotics and motion control
* Grid infrastructure
* Building automation
* Industrial Ethernet fieldbus

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DP83822H, DP83822HF. Please refer to the document for exact specifications by model.

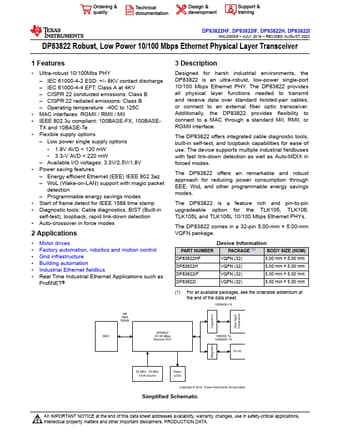

datasheet Preview Page 2 datasheet Preview Page 3
