DP83826

Low-Latency Low-Power 10/100Mbps Industrial Ethernet PHY

DP83826 Features

* Low and deterministic latency

* TX latency: 40 ns, RX latency: 170 ns

* Deterministic latency over power cycles < ±2 ns

* Fixed phase XI to TX_CLK relationship < ±2 ns

* Robust and small system solution

* Integrated circuitry for enhanced EMC

DP83826 General Description

The DP83826 offers low and deterministic latency, low power and supports 10BASE-Te, 100BASE-TX Ethernet protocols to meet stringent requirements in real-time industrial Ethernet systems. The device includes hardware bootstraps to achieve fast link-up time, fast link-drop detection modes and dedicat.

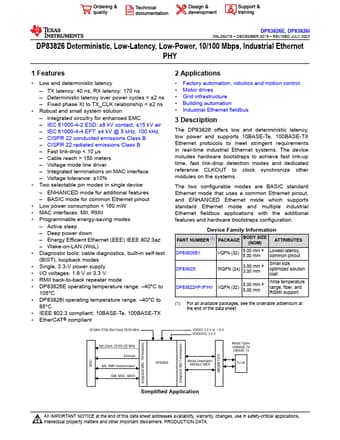

DP83826 Datasheet (3.30 MB)

Preview of DP83826 PDF

Datasheet Details

Part number:

DP83826

Manufacturer:

Texas Instruments ↗

File Size:

3.30 MB

Description:

Low-latency low-power 10/100mbps industrial ethernet phy.
DP83826E, DP83826I SNLS647G

* DECEMBER 2019

* REVISED JULY 2023 DP83826 Deterministic, Low-Latency, Low-Power, 10/100 Mbps, Industrial.
