DP83858 - 100 Mb/s TX/T4 Repeater Interface Controller

Product Overview

National Semiconductor

Datasheet Details

Part number	DP83858
Manufacturer	National Semiconductor
File Size	246.32 KB
Description	100 Mb/s TX/T4 Repeater Interface Controller
Datasheet	DP83858 Datasheet

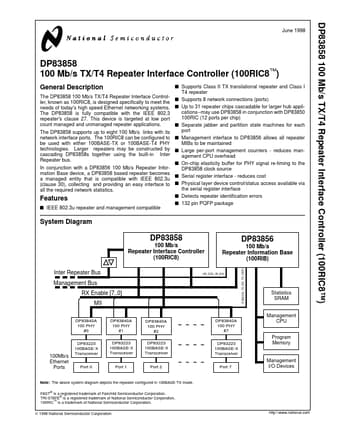

Additional preview pages of the DP83858 datasheet.

Product details

Description

The DP83858 100 Mb/s TX/T4 Repeater Interface Controller, known as 100RIC8, is designed speciﬁcally to meet the needs of today's high speed Ethernet networking systems.

Features

s IEEE 802.3u repeater and management compatible www. DataSheet4U. com System Diagram DP83858 100 Mb/s Repeater Interface Controller (100RIC8) Inter Repeater Bus Management Bus RX Enable [7..0] MII DP83840A 100 PHY #0 DP83223 100BASE-X Transceiver Port 0 DP83840A 100 PHY #1 DP83223 100BASE-X Transceiver Port 1 DP83840A 100 PHY #2 DP83223 100BASE-X Transceiver Port 2 DP83840A 100 PHY #7 DP83223 100BASE-X Transceiver Port 7 DP83856 100 Mb/s Repeater Information Base (100RIB) (TXD[3:0], TX_ER, TX_.
