DS3649 Datasheet - National Semiconductor

Hex TRI-STATE TTLto MOS Drivers

DS3649 Features

* Y High speed capabilities Typ 9 ns driving 50 pF Typ 30 ns driving 500 pF Y TRI-STATE outputs for data bussing Y Built-in 15X dam

DS3649 General Description

The DS1649 DS3649 and DS1679 DS3679 are Hex TRI-STATE MOS drivers with outputs designed to drive large capacitive loads up to 500 pF associated with MOS memory systems PNP input transistors are employed to reduce input currents allowing the large fan-out to these drivers needed in memory systems The.

DS3649 Datasheet (140.37 KB)

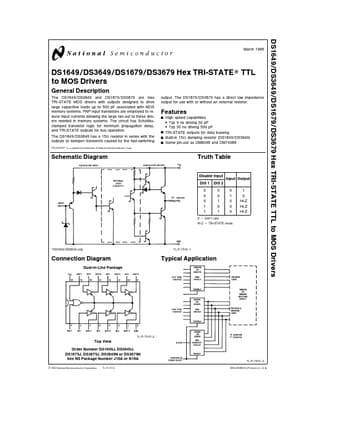

DS3649 Datasheet Preview — Preview of DS3649 PDF

Datasheet Details

Part number:

DS3649

Manufacturer:

National Semiconductor

File Size:

140.37 KB

Description:

Hex tri-state ttlto mos drivers.
DS1649 DS3649 DS1679 DS3679 Hex TRI-STATE TTL to MOS Drivers March 1986 DS1649 DS3649 DS1679 DS3679 Hex TRI-STATE TTL to MOS Drivers General Descri.
