DS3668 Quad Fault Protected Peripheral Driver

DS3668 Description

DS3668 Quad Fault Protected Peripheral Driver January 2001 DS3668 Quad Fault Protected Peripheral Driver General .
The DS3668 quad peripheral driver is designed for those applications where low operating power, high breakdown voltage, high output current and low ou.

DS3668 Features

* n Output fault protection n High impedance TTL compatible inputs n High output current
* 600 mA per output n No output latch-up at 35V n Low output ON voltage (550 mV typ @ 600 mA) n High breakdown voltage (70V) n Open collector outputs n Output clamp diodes for inductive fly-back protection

DS3668 Applications

* where low operating power, high breakdown voltage, high output current and low output ON voltage are required. Unlike most peripheral drivers available, a unique fault protected circuit is incorporated on each output. When the load current exceeds 1.0A (approximately) on any output for more than a b

📥 Download Datasheet

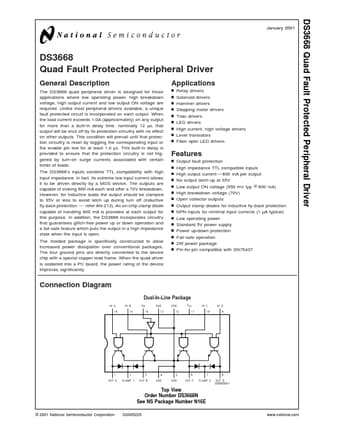

Preview of DS3668 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DS3668
Manufacturer
National Semiconductor
File Size
129.45 KB
Datasheet
DS3668_NationalSemiconductor.pdf
Description
Quad Fault Protected Peripheral Driver
