DS36954 Quad Differential Bus Transceiver

DS36954 Description

DS36954 Quad Differential Bus Transceiver July 1998 DS36954 Quad Differential Bus Transceiver General .
The DS36954 is a low power, quad EIA-485 differential bus transceiver especially suited for high speed, parallel, multipoint, I/O bus applications.

DS36954 Features

* n n n n n n Pinout for SCSI interface Compact 20-pin PLCC or SOIC package Meets EIA-485 standard for multipoint bus transmission Greater than 60 mA source/sink currents Thermal shutdown protection Glitch-free driver outputs on power up and down Connection Diagrams Logic Diagrams DS011014-1 Order

DS36954 Applications

* A compact 20-pin surface mount PLCC or SOIC package provides high transceiver integration and a very small PC board footprint. Propagation delay skew between devices is specified to aid in parallel interface designs
* limits on maximum and minimum delay times are guaranteed. Five devices ca

📥 Download Datasheet

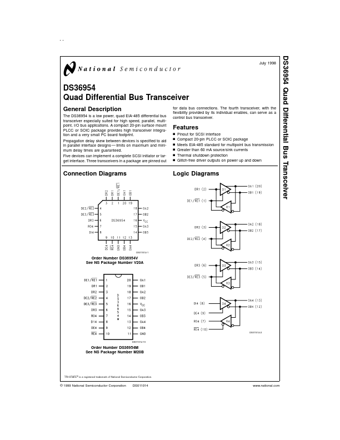

Preview of DS36954 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DS36954
Manufacturer
National Semiconductor
File Size
156.67 KB
Datasheet
DS36954_NationalSemiconductor.pdf
Description
Quad Differential Bus Transceiver
