DS42MB200, Dual 4.25 Gbps 2:1/1:2 CML Mux/Buffer

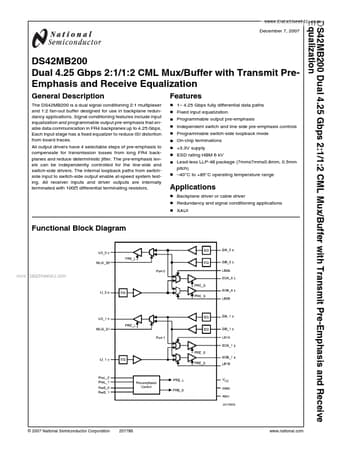

DS42MB200 Dual 4.25 Gbps 2:1/1:2 CML Mux/Buffer with Transmit Pre-Emphasis and Receive Equalization December 7, 2007 DS42MB200 Dual 4.25 Gbps 2:1/1:.
The DS42MB200 is a dual signal conditioning 2:1 multiplexer and 1:2 fan-out buffer designed for use in backplane redundancy applications.

datasheet Preview Page 1 from Datasheet4u.com

DS42MB200_NationalSemiconductor.pdf

DS42MB200 Datasheet Preview — Preview of DS42MB200 PDF

Datasheet Details

Part number:

DS42MB200

Manufacturer:

National Semiconductor

File Size:

3.16 MB

Description:

Dual 4.25 Gbps 2:1/1:2 CML Mux/Buffer

Features

* include input equalization and programmable output pre-emphasis that enable data communication in FR4 backplanes up to 4.25 Gbps. Each input stage has a fixed equalizer to reduce ISI distortion from board traces. All output drivers have 4 selectable steps of pre-emphasis to compensate for transmissi
