DS8674

Low Power VHF/UHF Prescalers

DS8674 Features

* Y Y Y Y Y 1 0 GHz operating frequency 25 mA typical supply current 20 mV rms input sensitivity 0 8V complementary ECL outputs Low output radiation Block and Connection Diagrams Dual-In-Line Package TL F 9340

* 1 Top View Order Number DS8673N or DS8674N See NS Package Number N08E TL F 93

DS8674 General Description

The DS8673 and DS8674 products are low power prescalers which divide by 64 and 256 respectively The devices are used in frequency synthesis applications such as TV CATV cellular phone and instrumentation to divide a very high frequency down to a frequency usable by low power MOS PLL’s The devices ha.

DS8674 Datasheet (97.90 KB)

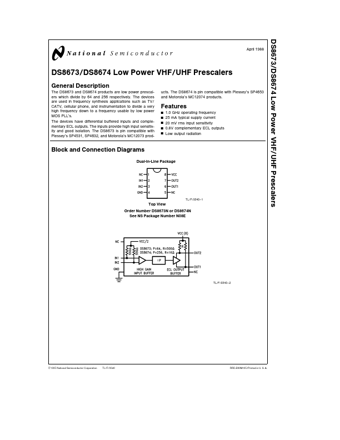

Preview of DS8674 PDF

Datasheet Details

Part number:

DS8674

Manufacturer:

National Semiconductor

File Size:

97.90 KB

Description:

Low power vhf/uhf prescalers.
