DS8832 - Dual TRI-STATE Line Driver

Datasheet Summary

Description

Through simple logic control the DS7831 DS8831 DS7832 DS8832 can be used as either a quad single-ended line driver or a dual differential line driver They are specifically designed for party line (bus-organized) systems The DS7832 DS8832 does not have the VCC clamp diodes found on the DS7831 DS8831

Features

Y Y Y Y Y Y Series 54 74 compatible 17 ns propagation delay Very low output impedance high drive capability 40 mA sink and source currents Gating control to allow either single-ended or differential operation High impedance output state which allows many outputs to be connected to a common bus line Connection and Logic Diagram Dual-In-Line Package Order Number DS8831N DS8832J or DS8832N See NS Package Number J16A or N16A For Complete Military 883 Specificatons See RETS Data Sheet Order Numbe.

Datasheet Details

Part number	DS8832
Manufacturer	National Semiconductor
File Size	172.40 KB
Description	Dual TRI-STATE Line Driver
Datasheet	DS8832 Datasheet

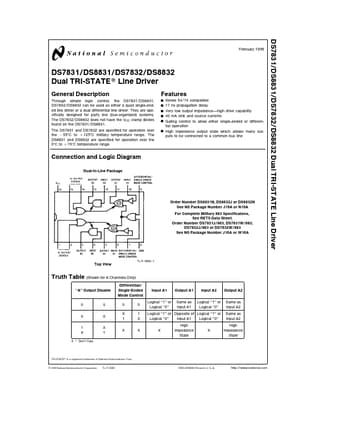

Additional preview pages of the DS8832 datasheet.

📁 Similar Datasheet

DS8830 - DUAL DIFFERENTIAL LINE DRIVERS (Texas Instruments)

DS8836 - Quad NOR Unified Bus Receiver (National)

DS8839 - Quad Tri-State Bus Transceivers (National)

DS8813D - Multi-Phase PWM Controller (Richtek)

DS8816A - Dual-Phase PWM Controller (Richtek)

DS8817A - Dual-Phase PWM Controller (Richtek)

DS8005 - Smart Card Interface (Maxim Integrated Products)

DS8007 - multiprotocol dual smart card interface (Maxim Integrated Products)

DS8007A - Multiprotocol Dual Smart Card Interface (Maxim Integrated Products)

DS8023 - Smart Card Interface (Maxim Integrated Products)

Full PDF Text Transcription

Click to expand full text

DS7831 DS8831 DS7832 DS8832 Dual TRI-STATE Line Driver February 1996 DS7831 DS8831 DS7832 DS8832 Dual TRI-STATE Line Driver General Description Through simple logic control the DS7831 DS8831 DS7832 DS8832 can be used as either a quad single-ended line driver or a dual differential line driver They are specifically designed for party line (bus-organized) systems The DS7832 DS8832 does not have the VCC clamp diodes found on the DS7831 DS8831 The DS7831 and DS7832 are specified for operation over the b55 C to a 125 C military temperature range The DS8831 and DS8832 are specified for operation over the 0 C to a 70 C temperature range Features Y Y Y Y Y Y Series 54 74 compatible 17 ns propagation delay Very low output impedance high drive capability 40 mA sink and source currents Gating co
