DS8833

Quad TRI-STATE Bus Transceivers

DS8833 Features

* Y Y Y Y Receiver hysteresis Receiver noise immunity Bus terminal current for normal VCC or VCC e 0V Receivers Sink Source Drivers Sink 400 mV typ 1 4V typ 80 mA max 16 mA at 0 4V max 2 0 mA (Mil) at 2 4V min 5 2 mA (Com) at 2 4V min Y Y Y Y Y 50 mA at 0 5V max 32 mA at 0 4V max Source 10 4 m

DS8833 General Description

This family of TRI-STATE bus transceivers offers extreme versatility in bus organized data transmission systems The data bus may be unterminated or terminated DC or AC at one or both ends Drivers in the third (high impedance) state load the data bus with a negligible leakage current The receiver inp.

DS8833 Datasheet (125.06 KB)

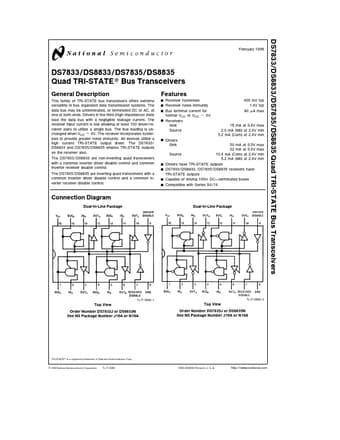

Preview of DS8833 PDF

Datasheet Details

Part number:

DS8833

Manufacturer:

National Semiconductor

File Size:

125.06 KB

Description:

Quad tri-state bus transceivers.
DS7833 DS8833 DS7835 DS8835 Quad TRI-STATE Bus Transceivers February 1996 DS7833 DS8833 DS7835 DS8835 Quad TRI-STATE Bus Transceivers General Descri.
