DS8838

Quad Unified Bus Transceiver

DS8838 Features

* n n n n n n n n n 4 totally separate driver/receiver pairs per package 1V typical receiver input hysteresis Receiver hysteresis independent of receiver output load Guaranteed minimum bus noise immunity of 1.3V, 2V typ. Temperature-insensitive receiver thresholds track bus logic levels 20 µA typical

DS8838 General Description

The DS8838 is a quad high speed driver/receiver designed for use in bus organized data transmission systems interconnected by terminated 120Ω impedance lines. The external termination is intended to be 180Ω resistor from the bus to the +5V logic supply together with a 390Ω resistor from the bus to g.

DS8838 Datasheet (82.35 KB)

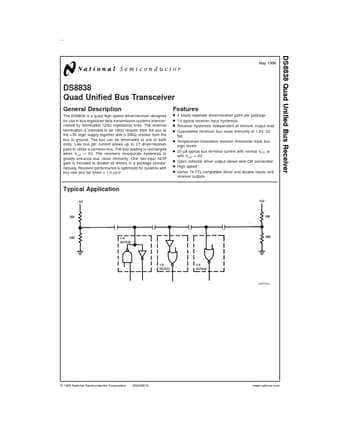

Preview of DS8838 PDF

Datasheet Details

Part number:

DS8838

Manufacturer:

National Semiconductor

File Size:

82.35 KB

Description:

Quad unified bus transceiver.
