DS90CR218

+3.3V Rising Edge Data Strobe LVDS

DS90CR218 Features

* n 20 to 75 MHz shift clock support n 50% duty cycle on receiver output clock n Best-in-Class Set & Hold Times on TxINPUTs and RxOUTPUTs n Low power consumption n Tx + Rx Powerdown mode < 400µW (max) n ± 1V common-mode range (around +1.2V) n Narrow bus reduces cable size and cost n Up to 1.575 Gbps t

DS90CR218 General Description

The DS90CR217 (see DS90CR217/218A datasheet) transmitter converts 21 bits of CMOS/TTL data into three LVDS (Low Voltage Differential Signaling) data streams. A phaselocked transmit clock is transmitted in parallel with the data streams over a fourth LVDS link. Every cycle of the transmit clock 21 bi.

DS90CR218 Datasheet (239.60 KB)

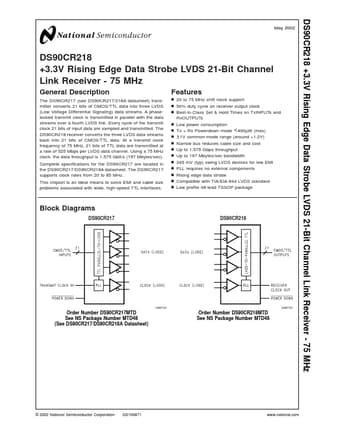

Preview of DS90CR218 PDF

Datasheet Details

Part number:

DS90CR218

Manufacturer:

National Semiconductor

File Size:

239.60 KB

Description:

+3.3v rising edge data strobe lvds.
DS90CR218 +3.3V Rising Edge Data Strobe LVDS 21-Bit Channel Link Receiver - 75 MHz May 2002 DS90CR218 +3.3V Rising Edge Data Strobe LVDS 21-Bit Chan.
