INS8228

System Controller and Bus Driver

INS8228 Features

* MICROBUSlM

* Compatible

* Single Chip System' Controller and Bus Driver for 1NS8080A Microcomputer Systems

* Allows Use of Multibyte CALL Instructions for Interrupt Acknowledge

* Provides User-Selected Single-Level Interrupt Vector (RST7)

* Provides Isola

INS8228 General Description

The INS8228/INS8238 is a system controller/bus driver contained in a standard, 28-pin dual-in-line package. The chip, which is fabricated using Schottky Bipolar technology, generates all the read and write control signals required to directly interface the memory and input/output components of Natio.

INS8228 Datasheet (443.10 KB)

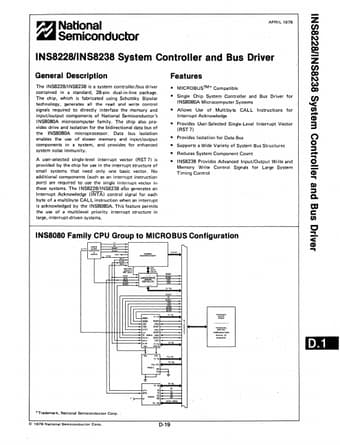

Preview of INS8228 PDF

Datasheet Details

Part number:

INS8228

Manufacturer:

National Semiconductor

File Size:

443.10 KB

Description:

System controller and bus driver.
