LF13007

Digital Gain Set

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor National Semiconductor Corporation LF13007N IC,DIGITAL GAIN SET,BIPOLAR,DIP,16PIN,PLASTIC Quest Components 259 129 units
$3.6

LF13007 Datasheet (189.28 KB)

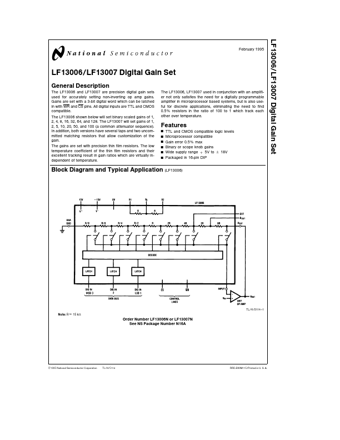

Preview of LF13007 PDF Datasheet

Datasheet Details

Part number:

LF13007

Manufacturer:

National Semiconductor

File Size:

189.28 KB

Description:

Digital gain set

LF13007 Features

* Y Y Y Y Y Y TTL and CMOS compatible logic levels Microprocessor compatible Gain error 0 5% max Binary or scope knob gains Wide supply range a 5V to g 18V Packaged in 16-pin DIP Block Diagram and Typical Application (LF13006) TL H 5114

* 1 Note R j 15 kX Order Number LF13006N or LF13007N

LF13007 General Description

The LF13006 and LF13007 are precision digital gain sets used for accurately setting non-inverting op amp gains Gains are set with a 3-bit digital word which can be latched in with WR and CS pins All digital inputs are TTL and CMOS compatible The LF13006 shown below will set binary scaled gains of 1 .
