LF101ED, LF100ED, Dual Output Ultra-Miniature 1W SMT DC/DC Converters

LF100ED Series Lowest Cost, Dual Output Ultra-Miniature 1W SMT DC/DC Converters Electrical Speciﬁcations Speciﬁcations typical @ +25°C, nominal input .
Pin Description -Vin 6 NC +Vin 7 +Vout NC 8 NC Common 9 NC -Vout 10 NC NC = No Connection For applications requiring very low output noise levels, a.

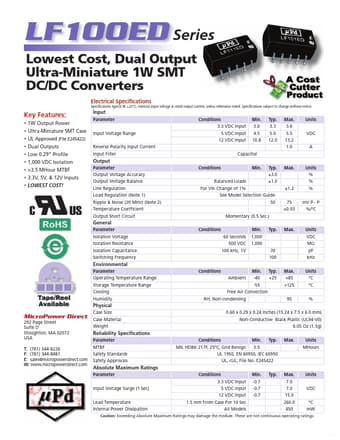

datasheet Preview Page 1 from Datasheet4u.com

LF100ED-MicroPowerDirect.pdf

LF101ED Datasheet Preview — This datasheet PDF includes multiple part numbers: LF101ED, LF100ED. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LF101ED, LF100ED

Manufacturer:

MicroPowerDirect

File Size:

240.64 KB

Description:

Dual Output Ultra-Miniature 1W SMT DC/DC Converters

Note:

This datasheet PDF includes multiple part numbers: LF101ED, LF100ED.
Please refer to the document for exact specifications by model.

Features

* 1W Output Power
* Ultra-Miniature SMT Case
* UL Approved (File E245422)
* Dual Outputs
* Low 0.29” Proﬁle
* 1,000 VDC Isolation
* >3.5 MHour MTBF
* 3.3V, 5V, & 12V Inputs
* LOWEST COST! Input Parameter Input Voltage Range Re

Applications

* the addition of input/output capacitors will enhance stability and reduce output ripple. Recommended capacitor values are: Vin 5 VDC 12 VDC 24 VDC Input Capacitor 4.7 µF 2.2 µF 1.0 µF Vout 5 VDC 9 VDC 12 VDC 15 VDC Output Capacitor 4.7 µF 2.2 µF 1.0 µF 0.47 µF Derating Curve Pin Connections Pin 1
