LF11202 Quad SPST JFET Analog Switches

These devices are a monolithic combination of bipolar and JFET technology producing the industry’s first one chip quad JFET switch. A unique circuit technique is employed to maintain a constant resistance over the analog voltage range of ± 10V. The input is designed to operate from minimum TTL level.

LF11202 Features

* n Analog signals are not loaded n Constant “ON” resistance for signals up to ± 10V and 100 kHz n Pin compatible with CMOS switches with the advantage of blow out free handling n Small signal analog signals to 50 MHz n Break-before-make action: tOFF < tON n High open switch isolation at 1.0 MHz:

LF1-320.pdf

This datasheet PDF includes multiple part numbers: LF11202, LF1. Please refer to the document for exact specifications by model.

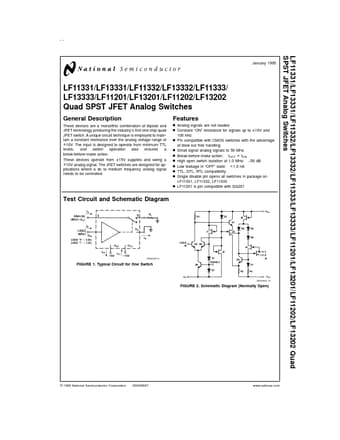

LF11202 Datasheet Preview Page 2 LF11202 Datasheet Preview Page 3

Datasheet Details

Part number:

LF11202, LF1

Manufacturer:

National Semiconductor

File Size:

416.30 KB

Description:

Quad spst jfet analog switches.

Note:

This datasheet PDF includes multiple part numbers: LF11202, LF1.
Please refer to the document for exact specifications by model.
