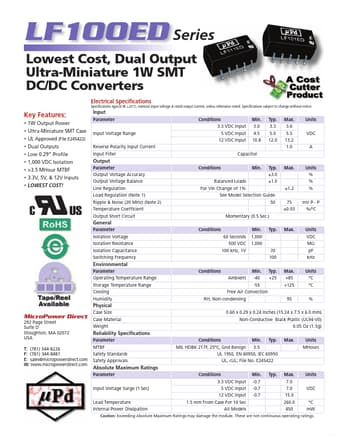

Description
Pin Description -Vin 6 NC +Vin 7 +Vout NC 8 NC Common 9 NC -Vout 10 NC NC = No Connection
For applications requiring very low output noise levels, a simple LC filter should be effective.5. It is recommended that a fuse be used on the input of a power supply for protection.See the Model Selection table above for the correct rating.Recommended Solder Profile
Mechanical Dimensions
Board Layout
Notes:.
All dimensions are typical in inches (mm).
Tolerance x.xx = ±0.01 (±0.25).
Features
- 1W Output Power.
- Ultra-Miniature SMT Case.
- UL Approved (File E245422).
- Dual Outputs.
- Low 0.29” Profile.
- 1,000 VDC Isolation.
- >3.5 MHour MTBF.
- 3.3V, 5V, & 12V Inputs.
