LF11333, LF1 Datasheet - National Semiconductor

LF11333, LF1, Quad SPST JFET Analog Switches

LF11331/LF13331/LF11332/LF13332/LF11333/LF13333/LF11201/LF13201/LF11202/LF13202 Quad SPST JFET Analog Switches January 1995 LF11331/LF13331/LF11332/.
These devices are a monolithic combination of bipolar and JFET technology producing the industry’s first one chip quad JFET switch.

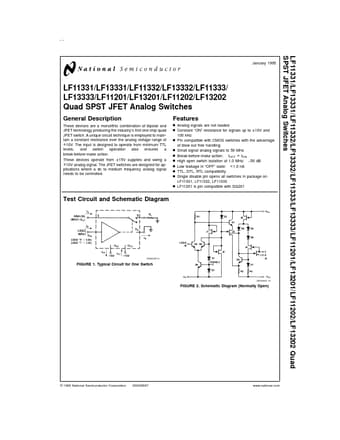

datasheet Preview Page 1 from Datasheet4u.com

LF1-320.pdf

LF11333 Datasheet Preview — This datasheet PDF includes multiple part numbers: LF11333, LF1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LF11333, LF1

Manufacturer:

National Semiconductor

File Size:

416.30 KB

Description:

Quad SPST JFET Analog Switches

Note:

This datasheet PDF includes multiple part numbers: LF11333, LF1.
Please refer to the document for exact specifications by model.

Features

* n Analog signals are not loaded n Constant “ON” resistance for signals up to ± 10V and 100 kHz n Pin compatible with CMOS switches with the advantage of blow out free handling n Small signal analog signals to 50 MHz n Break-before-make action: tOFF < tON n High open switch isolation at 1.0 MHz:
