LF112ED Dual Output Ultra-Miniature 1W SMT DC/DC Converters

Pin Description -Vin 6 NC +Vin 7 +Vout NC 8 NC Common 9 NC -Vout 10 NC NC = No Connection For applications requiring very low output noise levels, a simple LC ﬁlter should be effective. 5. It is recommended that a fuse be used on the input of a power supply for protection. See the Model Selection t.

LF112ED Features

* 1W Output Power

* Ultra-Miniature SMT Case

* UL Approved (File E245422)

* Dual Outputs

* Low 0.29” Proﬁle

* 1,000 VDC Isolation

* >3.5 MHour MTBF

* 3.3V, 5V, & 12V Inputs

* LOWEST COST! Input Parameter Input Voltage Range Re

LF112ED Datasheet (240.64 KB)

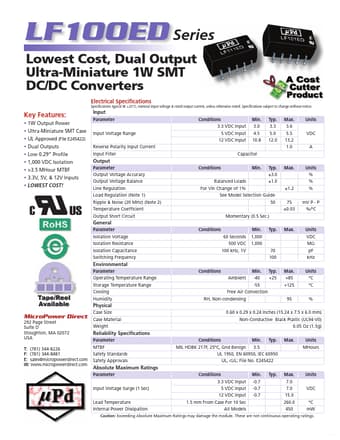

LF112ED Datasheet Preview — Preview of LF112ED PDF

Datasheet Details

Part number:

LF112ED

Manufacturer:

MicroPowerDirect

File Size:

240.64 KB

Description:

Dual output ultra-miniature 1w smt dc/dc converters.
