LM1036, DUAL DC OPERATED TONE/VOLUME BALANCE CIRCUITS

LM1036 Dual DC Operated Tone/Volume/Balance Circuit January 1995 LM1036 Dual DC Operated Tone/Volume/Balance Circuit General .
The LM1036 is a DC controlled tone (bass/treble), volume and balance circuit for stereo applications in car radio, TV and audio systems.

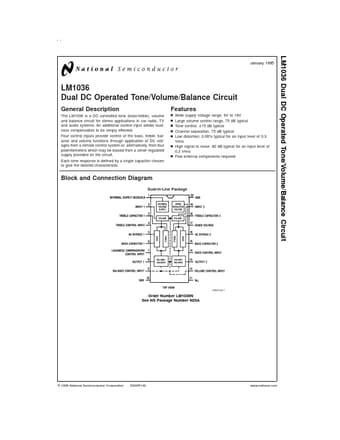

datasheet Preview Page 1 from Datasheet4u.com

LM1036_NationalSemiconductor.pdf

LM1036 Datasheet Preview — Preview of LM1036 PDF

Datasheet Details

Part number:

LM1036

Manufacturer:

National Semiconductor

File Size:

339.88 KB

Description:

DUAL DC OPERATED TONE/VOLUME BALANCE CIRCUITS

Features

* Wide supply voltage range, 9V to 16V Large volume control range, 75 dB typical Tone control, ± 15 dB typical Channel separation, 75 dB typical Low distortion, 0.06% typical for an input level of 0.3 Vrms n High signal to noise, 80 dB typical for an input level of 0.3 Vrms n Few external components r

Applications

* in car radio, TV and audio systems. An additional control input allows loudness compensation to be simply effected. Four control inputs provide control of the bass, treble, balance and volume functions through application of DC voltages from a remote control system or, alternatively, from four poten
