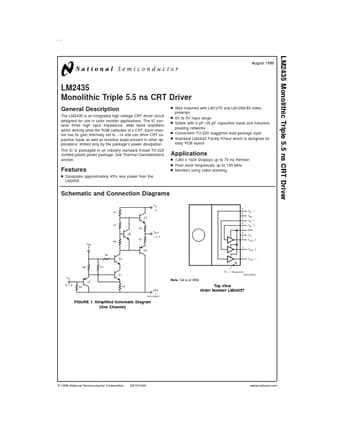

LM2435 Monolithic Triple 5.5 ns CRT Driver

The LM2435 is an integrated high voltage CRT driver circuit designed for use in color monitor applications. The IC contains three high input impedance, wide band amplifiers which directly drive the RGB cathodes of a CRT. Each channel has its gain internally set to *14 and can drive CRT capac.

LM2435 Features

* n Dissipates approximately 45% less power than the LM2405 Schematic and Connection Diagrams DS101044-2 Note: Tab is at GND Top View Order Number LM2435T DS101044-1 FIGURE 1. Simplified Schematic Diagram (One Channel) © 1999 National Semiconductor Corporation DS101044 www.national.com Absolu
