LM2437T - Monolithic Triple 7.5 ns CRT Driver

Product Overview

National Semiconductor

Datasheet Details

Part number	LM2437T
Manufacturer	National Semiconductor
File Size	529.30 KB
Description	Monolithic Triple 7.5 ns CRT Driver
Datasheet	LM2437T Datasheet

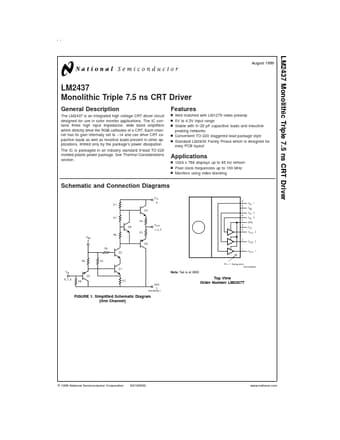

Additional preview pages of the LM2437T datasheet.

Product details

Description

The LM2437 is an integrated high voltage CRT driver circuit designed for use in color monitor applications. 14 and can drive CRT capacitive loads as well as resistive loads present in other applications, limited only by the package’s power dissipation.

Features

n Well matched with LM1279 video preamp n 0V to 4.5V input range n Stable with 0.
20 pF capacitive loads and inductive peaking networks n Convenient TO-220 staggered lead package style n Standard LM243X Family Pinout which is designed for easy PCB layout.
