LM2435T, Monolithic Triple 5.5 ns CRT Driver

LM2435 Monolithic Triple 5.5 ns CRT Driver August 1999 LM2435 Monolithic Triple 5.5 ns CRT Driver General .
The LM2435 is an integrated high voltage CRT driver circuit designed for use in color monitor applications.

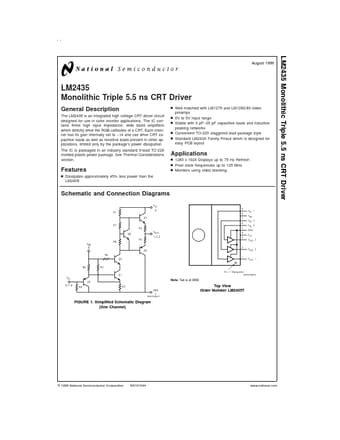

datasheet Preview Page 1 from Datasheet4u.com

LM2435T_NationalSemiconductor.pdf

LM2435T Datasheet Preview — Preview of LM2435T PDF

Datasheet Details

Part number:

LM2435T

Manufacturer:

National Semiconductor

File Size:

478.73 KB

Description:

Monolithic Triple 5.5 ns CRT Driver

Features

* n Dissipates approximately 45% less power than the LM2405 Schematic and Connection Diagrams DS101044-2 Note: Tab is at GND Top View Order Number LM2435T DS101044-1 FIGURE 1. Simplified Schematic Diagram (One Channel) © 1999 National Semiconductor Corporation DS101044 www. national. com Absolu

Applications

* The IC contains three high input impedance, wide band amplifiers which directly drive the RGB cathodes of a CRT. Each channel has its gain internally set to
* 14 and can drive CRT capacitive loads as well as resistive loads present in other applications, limited only by the package’s power d
